PVDF Pressure pipes Pressure pipe
Order no. 010000969
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability
Product properties
- High-performance material
- Low flammability
- Excellent chemical resistance
- Exceptionally good ageing resistance
- High rigidity
Areas of use
- Chemical installations
- Power plant engineering
- Mining
Approvals/certifications
- Produced from raw material with USP class VI certification
- Produced from DIBt-approved moulding compound
- DIN 4102 B1 low flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
PVDF Data sheet
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability

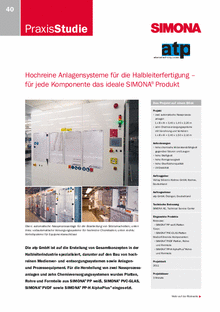

CaseStudy 40 - High-purity systems for semi-conductor production – the perfect SIMONA® product for all components Brochures
atp GmbH specialises in end-to-end concepts developed for applications in the semi-conductor industry, including the production of high-purity media distribution and disposal systems, as well as plant and process equipment. Sheets, pipes and fittings from the product groups SIMONA® PP white, SIMONA® PVC-GLAS, SIMONA® PVDF and SIMONA® PP-H AlphaPlus® were used for the production of two wet-processing units and ten chemical supply systems.
PDF | 222.28 KB
work.info 01 - Heated element butt-welding Videos
Processing movie Heated element butt-welding acc. to DVS 2207-1
work.info 02 - Heated element socket welding Videos
Processing movie Heated element socket welding acc. to DVS 2207-11.
work.info 03 - Electrofusion welding Videos
Processing movie Electrofusion welding acc. to DVS 2207-1
work.info 4.1 - Heated element butt welding SPC-Pipe Videos
Processing movie Heated element butt welding SPC-Pipe acc. to DVS 2207-1
work.info 4.2 - Electrofusion socket welding SPC-Pipe Videos
Processing movie Electrofusion socket welding SPC-Pipe acc. to DVS 2207-1
work.info 05 - Non contact heated tool butt welding Videos
Processing movie non contact heated tool butt welding acc. to DVS 2207-6
work.info 06 - Simultaneous welding of double-containment Videos
Processing movie Simultaneous welding of double-containment pipe acc. to DVS 2207-1
work.info 07 - Cascade welding of double-containment pipe Videos
Processing movie cascade welding of double-containment pipe acc. to DVS 2207-1.
