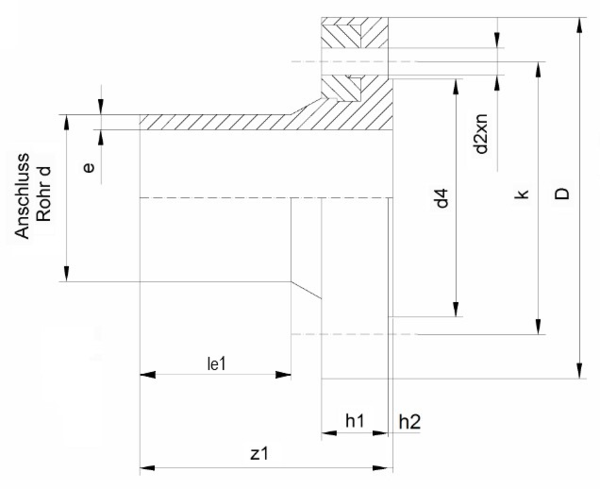

PE 100 RC Full face flanges, injected, With long spigots Full-face flange
Order no. 010007155
Material
PE 100 RC
d mm
125
SDR
11
e mm
11.4
d2 mm
18
d4 mm
158
D mm
238
k mm
180
h1 mm
36
h2 mm
3
z1 mm
173
Weight kg/piece
3.26
Product no.
010007155
Stock availability
Available on request
Areas of use
- Civil engineering
- Landfill engineering
- Water supply
- Sewage treatment plants
SIMONA® PE 100 Full Face Flanges - Universal connection, compact design Brochures
SIMONA® PE 100 full face flanges combine the high section modulus of PP/steel with the exceptional connection versatility of PE 100. Produced as part of a state-of-the-art injection moulding process, full face flanges can be used for the reliable and efficient connection of PE piping systems to metal-based components. Thus, SIMONA® PE 100 full face flanges are the perfect choice when it comes to combining different types of material within a specific piping system.
