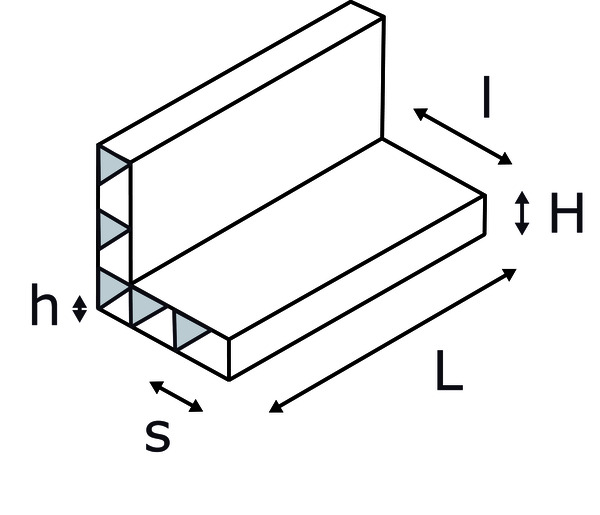

PP-H AlphaPlus® HKP Corner Elements lengthways-ribbed
Order no. 010014301
Material
PP-H AlphaPlus®
Angle °
90
Length L mm
3000
Side length l mm
490
Total thickness H mm
54.0
Thickness outer skin h mm
6.0
Web spacing s mm
54.0
Weight kg/piece
46.02
Colour
grey
Notice
PAL = pallet unit (pieces per pallet)
Product no.
010014301
Stock availability
Available on request
Homopolymer, alpha-nucleated, permanent-heat stability, grey
Product properties
- Permanent-heat stability
- High chemical resistance
- Excellent for use in chemical tank and equipment construction
- Alpha-nucleated
- Good long-term properties when exposed to a range of media
- High rigidity in upper temperature range
Areas of use
- Civil engineering
- Chemical installations
- Pharmaceuticals and bioindustry
- Livestock farming and agriculture
- Fish farming
- Swimming pool construction
Approvals/certifications
- Drinking water certification as per KTW and DVGW W270
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
PP-H AlphaPlus Data sheet
Homopolymer, alpha-nucleated, permanent-heat stability, grey
