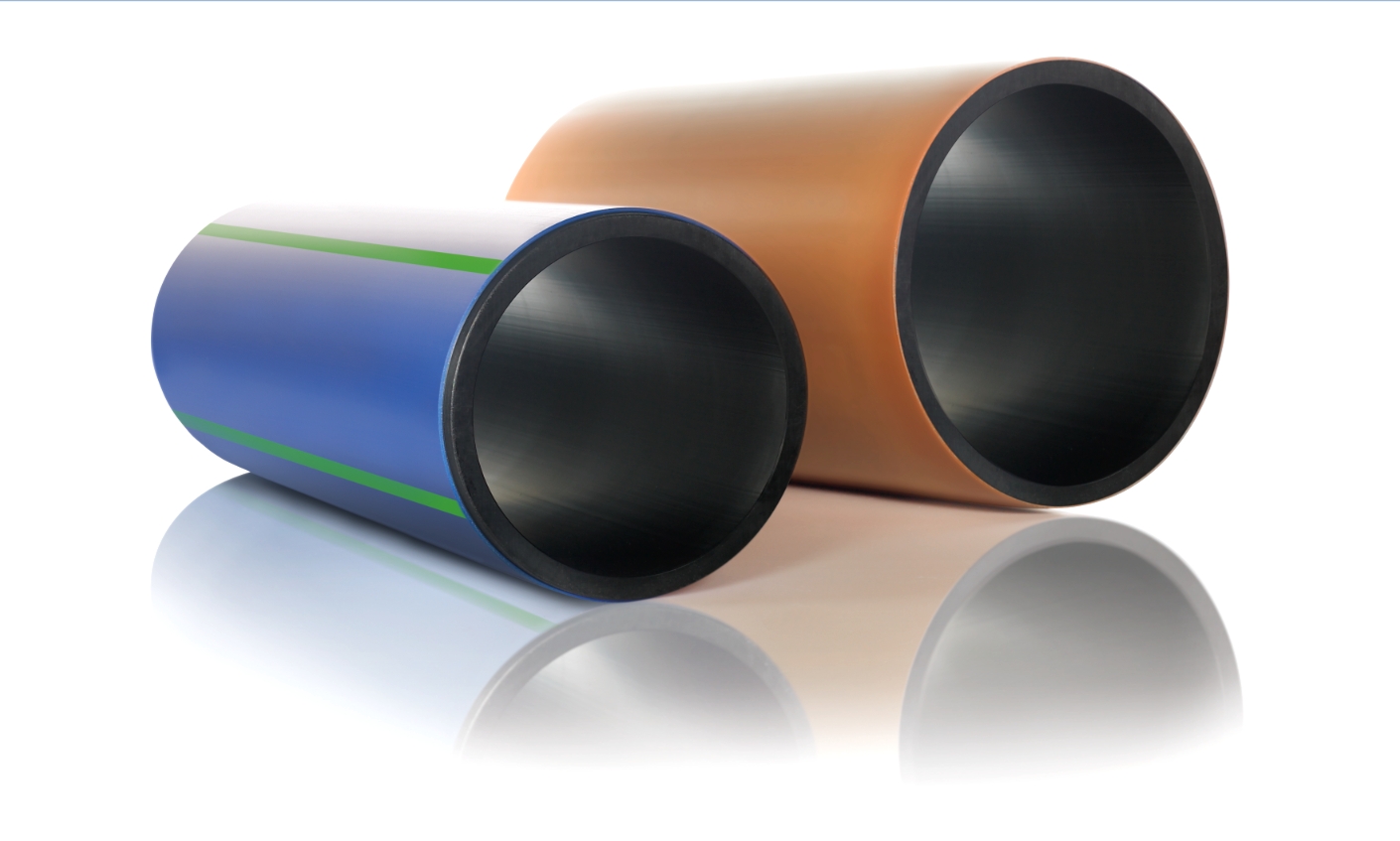

PE 100 RCline SPC drinking water pressure pipe with green stripes

Order no. 010016221

Technical drawing

Material

PE 100 SPC RC

SDR

d mm

560

e mm

50.8

e₂ mm

2.5

Weight kg/m

87.000

Length m

Colour

Inner pipe: black
Protective jacket: blue with green stripes

Product no.

010016221

Stock availability

Available on request

High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black, with coextruded PP protection pipe for trenchless laying.

Product properties

High chemical resistance
Outstanding processing parameters
High strength and rigidity
Extremely versatile

Areas of use

Civil engineering
Water supply

Approvals/certifications

General DIBt approval
DIN EN 12201
DIN 4102 B2 normal flammability (self-assessment without test certificate)
Physiological safety in accordance with BfR

PE 100 SPC RC Data sheet

Technical data sheet Material safety data sheet

ProjectReport 20 - Drinking-water pipeline renewed with SIMONA® SPC RC-Line Protective-Jacket Pipes Brochures

Public utility company Stadtwerke Mainz replaced a 3.7 km-long section of a major drinking-water pipeline with a special emphasis on cost-efficiency and environmental compatibility. The pipeline runs through the districts of Kostheim and Kastel and supplies drinking-water from the Hof Schönau and Petersaue waterworks to localities east of the Rhine. As it runs through the inner city area, there was very little space available for the rehabilitation project.

PDF | 3.67 MB

Download

CaseStudy 52 - SIMONA® PE 100 Liner Pipes reduction method for rehabilitation of drinking water main in Bern Brochures

In the Swiss capital of Bern a DN 300 mm grey cast iron drinking water main dating back to 1959 and spanning a length of 350 metres was rehabilitated. Owing to the high volume of traffic and the high cost of repair, it was not possible to consider an open-cut, conventional method of construction. For this reason, a decision was taken to renew the old grey cast iron pipeline by means of the reduction process (swagelining) using tough, pressure-resistant SIMONA^® PE 100 Liner Pipes.

PDF | 416.92 KB

Download

ProjectReport 13 - Renovation of a drinking water pipe System using SIMONA® SPC protective-jacket pipes Brochures

Due to continuous heavy water loss through old, defective water pipes in the drinking water supply of the Siberian town of Krasnoyarsk, a long-term solution was required for the water pipeline system. Coordinated by B & Q Omni Trade GmbH, Domburg and the planning services of Aufdermauer consultants, Krasnoyarsk officials opted for a modern PE pipeline system of SIMONA^® PE 100 protective-jacket pipes.

PDF | 575.35 KB

Download

CaseStudy 35 - Trenchless Pipeline Renewal with SIMONA® SPC RC-Line Pipes Brochures

In the town of Baden, Switzerland, a drinking water transport and supply pipeline that was over 60 years old was renewed along the same route using the pipe bursting method. The contractor, Brunschwiler AG, a leading civil engineering company specialising in trenchless pipe renewal, required a pipe that would meet the engineering challenges associated with the replacement of the 72 metre section. SIMONA^® SPC RC drinking water pipes were identified as the perfect solution. The pipe used was a SIMONA^® SPC RC drinking water pipe, d = 450 mm, with a polypropylene protective jacket.

PDF | 468.66 KB

Download

CaseStudy 18 - Tough conditions for SIMONA® PE 100 SPC RC-Line pipes at the Simplon Pass Brochures

On account of its North-South axis, the Simplon Pass is one of the most important traffic routes connecting Germany to Italy. This part of the A9, with a length of 42.5 km, runs between Brig in Switzerland and Gondo in Italy at an altitude of over 2,000 metres. The road was widened in the 1970s and 1980s in order to cope with the higher volume of traffic. It is used by 850,000 vehicles a year, 10 % of which are lorries.

PDF | 418.06 KB

Download
