PE 100 RC Stub flanges for loose flange ISO/DIN, with chamfer, injected, With short spigots Stub flange
Order no. 010022304

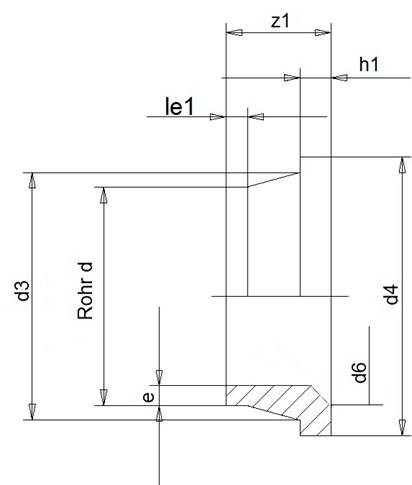

_-__sw_mit_d6.bmp.jpg)
Material
PE 100 RC
SDR
11
d mm
315
e mm
28.6
Design
injected
d3 mm
335
d4 mm
370
d6 mm
279.5
z1 mm
163
h1 mm
35
le1 mm
86
Weight kg/piece
5.65
Colour
black
VPE/P.U. Stck./Pcs.
3
Product no.
010022304
Stock availability
Available on request
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Landfill engineering
- Water supply
- Sewage treatment plants
Approvals/certifications
- General DIBt approval
- DIN EN 12201
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
Processing
PE 100 RC Data sheet
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
