SIMODUAL2 Electrofusion socket, extended, With long spigots Double-containment pipe fitting - electrofusion socket, extended
Order no. 010025376
Material internal/external
PE 100
SDR
17

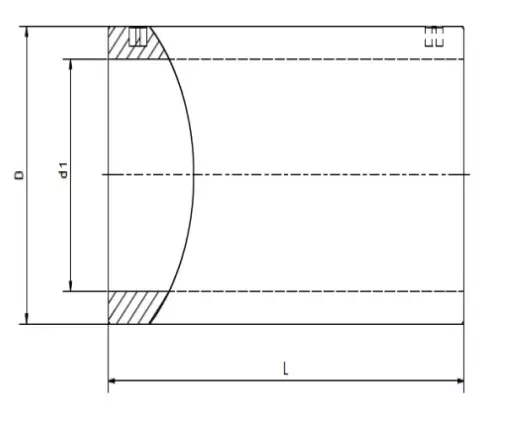

d mm
180
D mm
223
Length L mm
287
Weight kg/piece
6.08
Colour
black
Product no.
010025376
Stock availability
Available on request
High heat stability, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10 Mpa
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Food production
Approvals/certifications
- Produced from DIBt-approved moulding compound
- Drinking water certification as per KTW
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Food compliance EU 10/2011
Processing
PE 100 schwarz Data sheet
High heat stability, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10 Mpa
SIMODUAL² Product Range Brochures
SIMODUAL² Pipes & Fittings
PDF | 3.56 MB
SIMODUAL² Industrial Double-Containment Piping System - Dual pipes for double the protection Brochures
Double-walled piping systems are recommended for the transport of any hazardous substances. To address this need, SIMONA has developed the SIMODUAL2 Double-Containment Piping System as an innovative, all-inclusive system with integrated anchor points.
PDF | 1.21 MB
SIMODUAL² double containment piping system for industrial applications Videos
Processing note: Electrofusion sockets Videos
