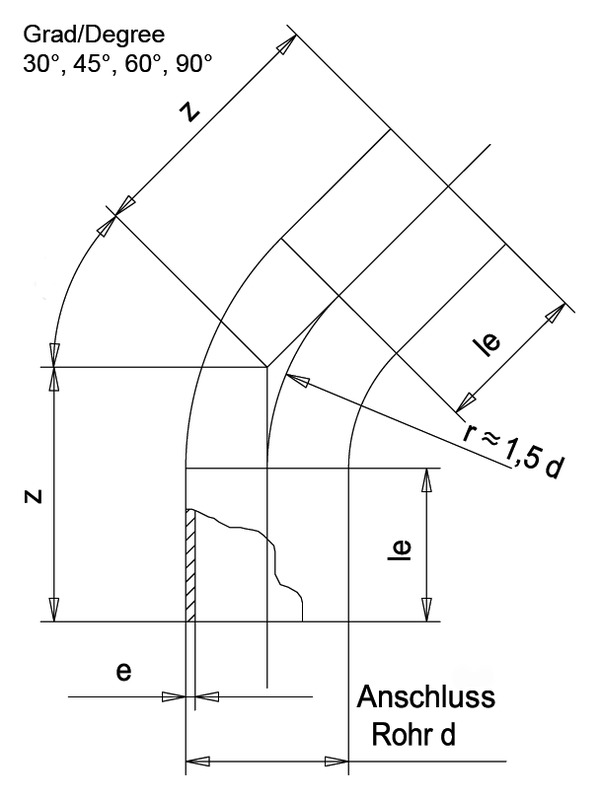

PE 100 RC FM-Line Bends, seamless, With long spigots Bend
Order no. 010026235
Material
PE 100 RC
SDR
11
d mm
400
e mm
36.3
Angle °
60
z1 mm
730
le1 mm
260
Weight kg/piece
63.00
Design
seamless
Colour
black
Product no.
010026235
Stock availability
Available on request
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
Approvals/certifications
- General DIBt approval
- DIN EN 12201
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
Processing
PE 100 RC Data sheet
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
SIMONA® PE 100 FM-Line - Pipes and fittings for firefighting water supply Brochures
The SIMONA® PE 100 FM-Line range of pipes and fittings with FM certification offers a superior standard of safety and quality for use in subterranean fire extinguishing systems. What is more, SIMONA is the first plastics manufacturer worldwide to supply "FM APPROVED" pipes and fittings in sizes up to d 630 mm.
