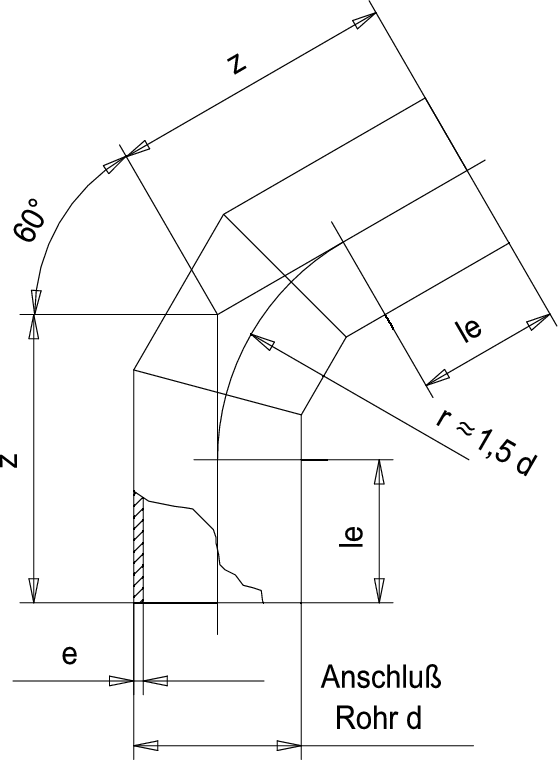

PP Bends, segment welded, With long spigots Bend
Order no. 010100849
Material
PP-H
SDR
17.6
d mm
400
e mm
22.7
Angle °
90
z1 mm
900
le1 mm
300
Weight kg/piece
40.70
Design
welded
Pressure reduction factor
0.8
Colour
grey - RAL 7032
Product no.
010100849
Stock availability
Available on request
Homopolymer, alpha-nucleated, permanent-heat stability, grey
Product properties
- Permanent-heat stability
- High chemical resistance
- Excellent for use in chemical tank and equipment construction
- Alpha-nucleated
- Good long-term properties when exposed to a range of media
- High rigidity in upper temperature range
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Power plant engineering
- Swimming pool construction
Approvals/certifications
- Drinking water certification as per KTW and DVGW W270
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
PP-H AlphaPlus Data sheet
Homopolymer, alpha-nucleated, permanent-heat stability, grey
