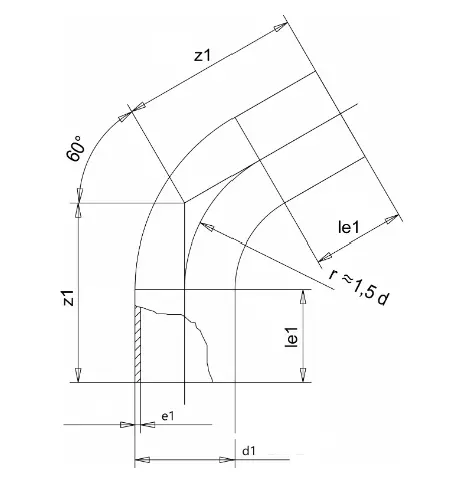

PE 100 RC Bends, seamless, With long spigots Bend
Order no. 010102364
Material
PE 100 RC
SDR
17
d mm
125
e mm
7.4
Angle °
11
z1 mm
225
le1 mm
120
Weight kg/piece
1.46
Design
seamless
Colour
black
VPE/P.U. Stck./Pcs.
8
Product no.
010102364
Stock availability
Immediately available
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Pharmaceuticals and bioindustry
- Landfill engineering
- Mining
- Geothermal engineering
- Renewable energy
- Water supply
- Seawater desalination
- Elevated water tanks
- Sewage treatment plants
- Swimming pool construction
Approvals/certifications
- General DIBt approval
- DIN EN 12201
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
Processing
PE 100 RC Data sheet
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
