PVDF Elbows 90°, injected, for socket welding Elbow
Order no. 010200276
Material
PVDF

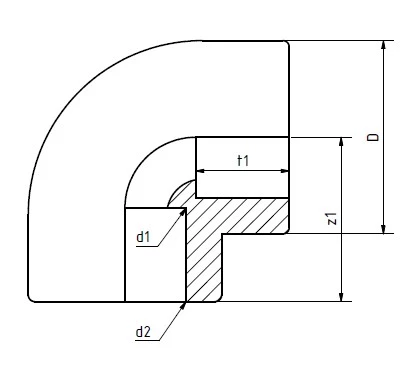

d mm
25
Angle °
90
z1 mm
32
d1 mm
24.3
d2 mm
24.5
D mm
32
Weight kg/piece
0.06
Design
injected
Colour
natural
VPE/P.U. Stck./Pcs.
250
Product no.
010200276
Stock availability
Immediately available
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability
Product properties
- High-performance material
- Low flammability
- Excellent chemical resistance
- Exceptionally good ageing resistance
- High rigidity
Areas of use
- Chemical installations
- Power plant engineering
- Mining
Approvals/certifications
- Produced from raw material with USP class VI certification
- Produced from DIBt-approved moulding compound
- DIN 4102 B1 low flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
PVDF Data sheet
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability
