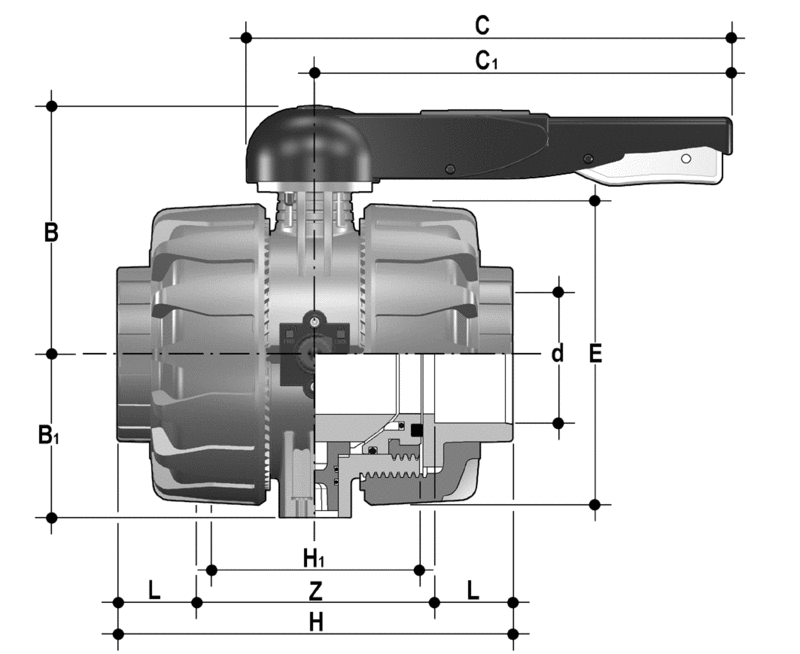

PP 2-way ball valves with thread sockets, EPDM 2-way ball valve
Order no. 012000037
Material
PP-H
d mm
20
DN mm
15
PN bar
10
Weight kg/piece
0.18
Gasket/seal
PTFE/EPDM
Product no.
012000037
Stock availability
Available on request
Homopolymer, permanent-heat stability, grey
Product properties
- Permanent-heat stability
- High chemical resistance
- High corrosion resistance
- Good long-term properties when exposed to a range of media
- High rigidity in upper temperature range
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Power plant engineering
- Swimming pool construction
Approvals/certifications
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
