PP/Steel Loose flanges, ISO/DIN drilled Loose flange
Order no. 013000035
Material
PP

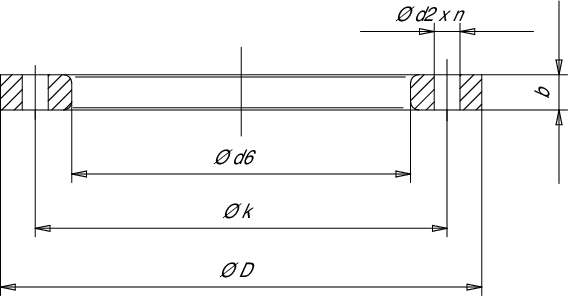

d mm
225
d2 mm
22
d6 mm
238
D mm
340
b mm
24
k mm
295
Drilled PN bar
10
PN loading bar
10
n Anzahl
8
Weight kg/piece
4.14
Bolt hole circle
ISO/DIN
DN connection dimensions mm
200
Colour
black
Product no.
013000035
Stock availability
Immediately available
Areas of use
- Civil engineering
- Chemical installations
- Pharmaceuticals and bioindustry
- Power plant engineering
- Swimming pool construction
