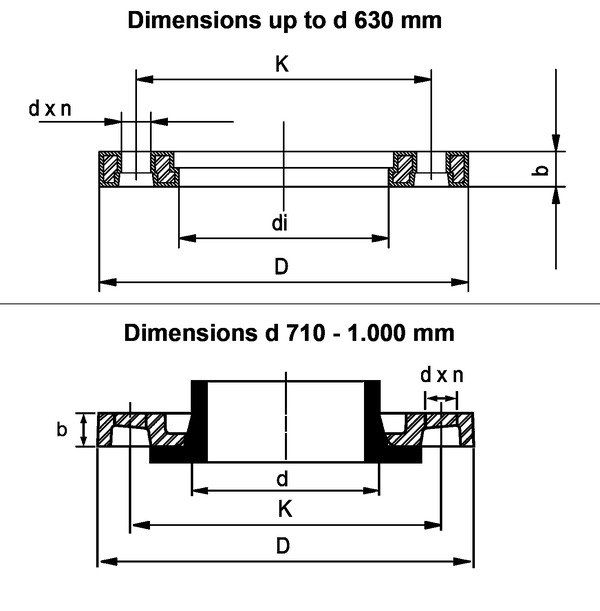

PP/Steel Profiled loose flanges, ISO/DIN drilled Profile loose flange
Order no. 013000262
Material
PP
d mm
200
DN connection dimensions mm
200
D mm
344
di mm
235
k mm
295
b mm
28
Drilled PN bar
16
PN loading bar
16
n Anzahl
12
Weight kg/piece
3.84
Bolt hole circle
ISO/DIN
Product no.
013000262
Stock availability
Immediately available
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Power plant engineering
- Swimming pool construction
