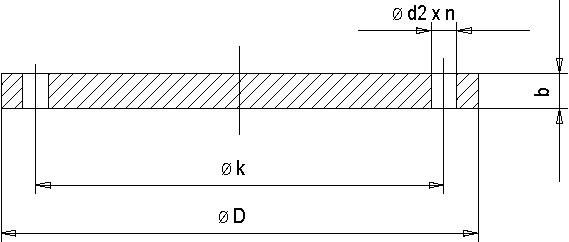

PP/Steel Blind flanges, ISO/DIN drilled Blind flange
Order no. 013100003
Material
PP
d mm
20
d2 mm
14
D mm
95
b mm
12
k mm
65
Drilled PN bar
10/16
PN loading bar
10
Bolt hole circle
ISO/DIN
DN connection dimensions mm
15
Product no.
013100003
Stock availability
Available on request
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Power plant engineering
- Swimming pool construction
