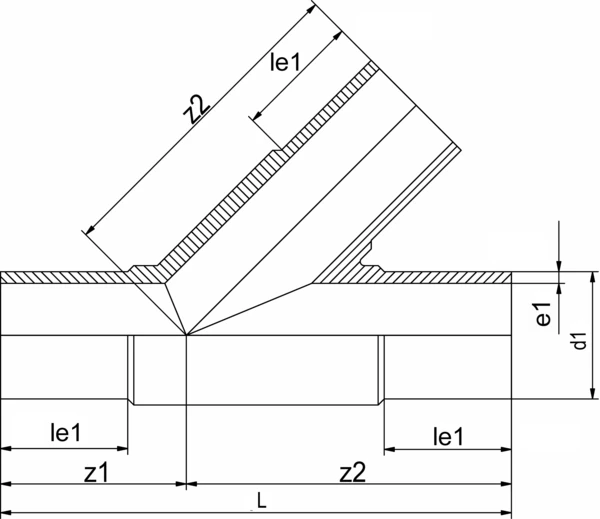

PE 100 RC Branches 45°, injected, With long spigots Branch
Order no. 013700670
Material
PE 100 RC
SDR
17
d mm
110
e mm
6.6
Angle °
45
z1 mm
139
z2 mm
260
le1 mm
90
Length L mm
399
Weight kg/piece
2.03
Design
injected
Colour
black
VPE/P.U. Stck./Pcs.
6
Product no.
013700670
Stock availability
Immediately available
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Landfill engineering
- Geothermal engineering
- Renewable energy
- Water supply
- Seawater desalination
- Elevated water tanks
- Sewage treatment plants
- Swimming pool construction
Approvals/certifications
- General DIBt approval
- DIN EN 12201
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
Processing
PE 100 RC Data sheet
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
