PE 100 RC End caps, injected, With long spigots End cap
Order no. 013900328
Material
PE 100 RC
SDR
17

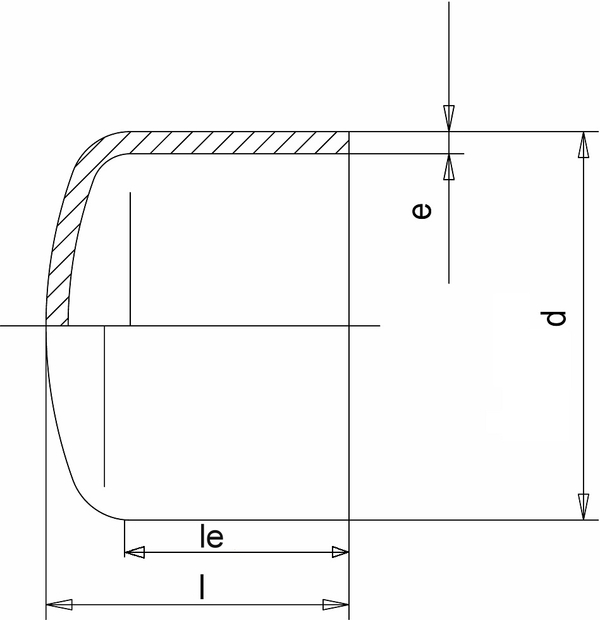

d mm
90
e mm
5.4
l mm
106
Design
injected
Weight kg/piece
0.16
Colour
black
VPE/P.U. Stck./Pcs.
36
Product no.
013900328
Stock availability
Immediately available
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Landfill engineering
- Water supply
- Sewage treatment plants
- Seawater desalination
Approvals/certifications
- General DIBt approval
- DIN EN 12201
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
Processing
PE 100 RC Data sheet
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
