PP Reducers concentric, injected, With short spigots Reducers concentric
Order no. 014900243
Material
PP-R
SDR
17.6

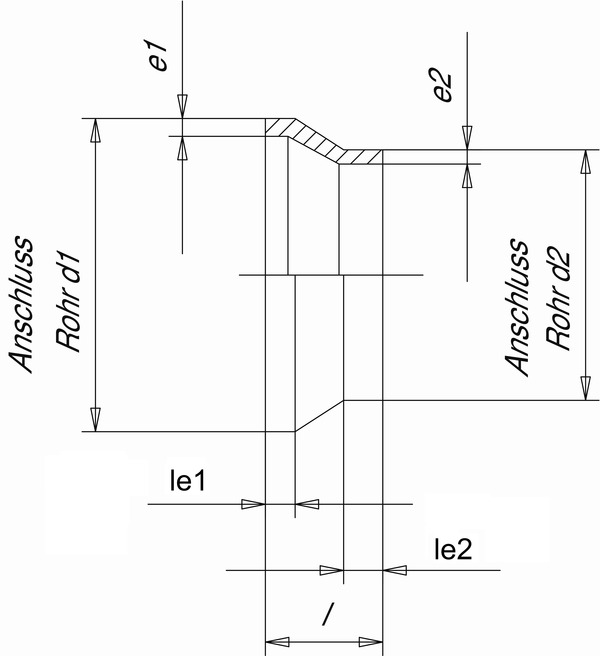

d1 mm
180
d2 mm
110
e1 mm
10.7
e2 mm
6.6
Design
injected
l mm
157
le1 mm
45
le2 mm
28
Weight kg/piece
0.62
Colour
grey - RAL 7032
VPE/P.U. Stck./Pcs.
12
Product no.
014900243
Stock availability
Available on request
Homopolymer, alpha-nucleated, permanent-heat stability, grey
Product properties
- Permanent-heat stability
- High chemical resistance
- Excellent for use in chemical tank and equipment construction
- Alpha-nucleated
- Good long-term properties when exposed to a range of media
- High rigidity in upper temperature range
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Power plant engineering
- Swimming pool construction
- Seawater desalination
Approvals/certifications
- Drinking water certification as per KTW and DVGW W270
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
PP-H AlphaPlus Data sheet
Homopolymer, alpha-nucleated, permanent-heat stability, grey
