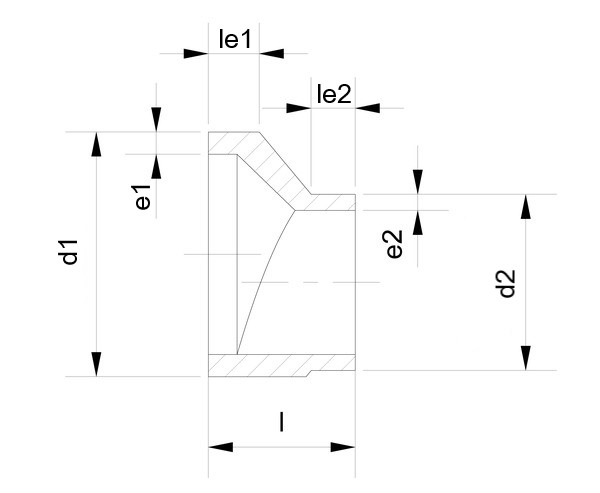

PE 100 Reducers excentric, machined, With short spigots Reducers excentric
Order no. 015000480
Material
PE 100 black
SDR
17
d1 mm
280
d2 mm
225
e1 mm
16.6
e2 mm
13.4
Design
machined
l mm
130
le1 mm
61
le2 mm
40
Weight kg/piece
2.05
Colour
black
Product no.
015000480
Stock availability
Available on request
High heat stability, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10 Mpa
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Landfill engineering
- Water supply
Approvals/certifications
- Produced from DIBt-approved moulding compound
- Drinking water certification as per KTW
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Food compliance EU 10/2011
Processing
PE 100 schwarz Data sheet
High heat stability, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10 Mpa
