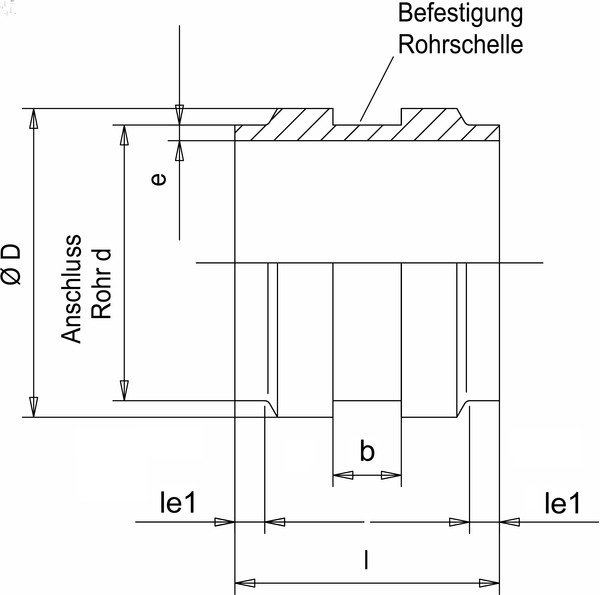

PE 100 Fixing points for pipe clamps, With short spigots Fixing points for pipe clamps
Order no. 015400084
Material
PE 100 black
SDR
17
d mm
160
D mm
180
e mm
9.5
l mm
240
b mm
52
le1 mm
30
Weight kg/piece
1.80
Colour
black
Product no.
015400084
Stock availability
Available on request
High heat stability, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10 Mpa
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Landfill engineering
- Water supply
- Sewage treatment plants
Approvals/certifications
- Produced from DIBt-approved moulding compound
- Drinking water certification as per KTW
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Food compliance EU 10/2011
Processing
PE 100 schwarz Data sheet
High heat stability, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10 Mpa
