PE 100 Tapping saddle Tapping saddle
Order no. 015700063
Material
PE 100 black

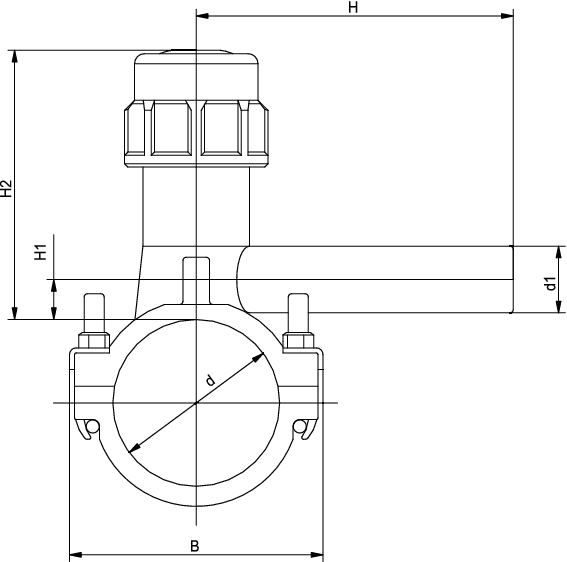

d mm
125
d2 mm
32
B mm
162
H mm
130
H1 mm
18
H2 mm
177
Weight kg/piece
1.02
Colour
black
Product no.
015700063
Stock availability
Available on request
High heat stability, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10 Mpa
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Civil engineering
- Landfill engineering
- Water supply
- Seawater desalination
- Elevated water tanks
- Sewage treatment plants
Approvals/certifications
- Produced from DIBt-approved moulding compound
- Drinking water certification as per KTW
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Food compliance EU 10/2011
Processing
PE 100 schwarz Data sheet
High heat stability, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10 Mpa
