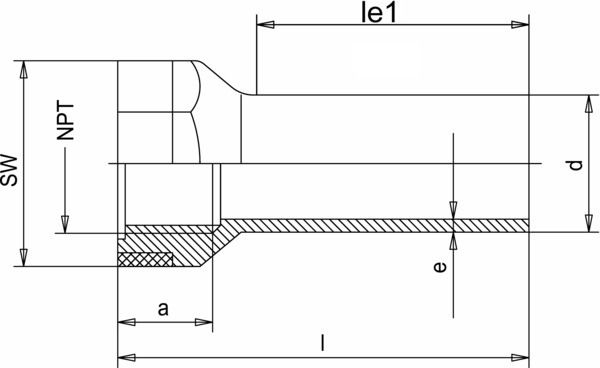

PP Adaptors with threaded female end, With long spigots Adaptor
Order no. 018800012
Material
PP-H
SDR
11
d mm
63
e mm
5.8
Thread R/Rp
Female thread NPT
SW mm
75
a mm
29
le1 mm
63
Length L mm
100
Weight kg/piece
0.12
Colour
grey - RAL 7032
VPE/P.U. Stck./Pcs.
50
Product no.
018800012
Stock availability
Immediately available
Homopolymer, alpha-nucleated, permanent-heat stability, grey
Product properties
- Permanent-heat stability
- High chemical resistance
- Excellent for use in chemical tank and equipment construction
- Alpha-nucleated
- Good long-term properties when exposed to a range of media
- High rigidity in upper temperature range
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Power plant engineering
- Swimming pool construction
Approvals/certifications
- Drinking water certification as per KTW and DVGW W270
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
