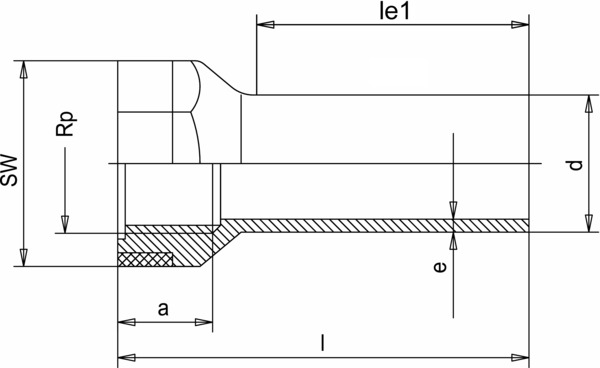

PE 100 RC Adaptors with threaded female end Rp, injected, With long spigots Adaptor
Order no. 019900015
Material
PE 100 RC
SDR
11
d mm
32
e mm
3.0
Thread R/Rp
Female thread Rp
SW mm
46
a mm
21
le1 mm
44
Length L mm
71
Weight kg/piece
0.03
Colour
black
VPE/P.U. Stck./Pcs.
200
Product no.
019900015
Stock availability
Immediately available
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
Product properties
- High chemical resistance
- Outstanding processing parameters
- High strength and rigidity
- Extremely versatile
Areas of use
- Landfill engineering
- Geothermal engineering
- Renewable energy
- Seawater desalination
Approvals/certifications
- General DIBt approval
- DIN EN 12201
- DIN 4102 B2 normal flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
Processing
PE 100 RC Data sheet
High-heat stability, increased resistance to slow crack growth, UV-stabilised, creep strength at 50 years, 20°C, medium water = 10.0 MPa, black
