PVC-GLAS Sheets

Order no. 030001233

Material
PVC-GLAS

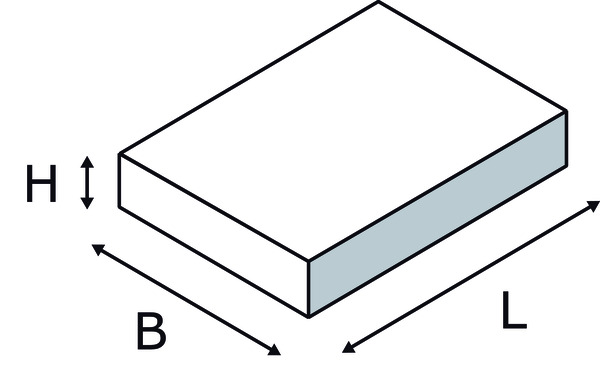

Length L mm
3000
Width B mm
1500
Thickness H mm
10.0
Weight kg/piece
61.83
Colour
transparent
PAL
15
Process
extruded
Coating
protective foil both sides
Notice
PAL = pallet unit (pieces per pallet)
Product no.
030001233
Stock availability
Immediately available

Rigid PVC, normal impact strength, transparent

Product properties

  • Extremely permeable to light (up to 88 %)
  • Perfect solution for visually appealing application
  • Low flammability
  • Highly cost-effective

Areas of use

  • Signage, display and exhibition stand design
  • Chemical installations
  • Pharmaceuticals and bioindustry

Approvals/certifications

  • PVC-U, Group 2 in accordance with ISO 11833-1
  • DIN 4102 B1 low flammability 1 to 4 mm
  • UL 94 V-0 up from 1 mm
  • BS 476 class 1 for 3 mm

Processing

PVC-GLAS

Data sheet update
28.04.2020
Moulding compound extruded
PVC-U,EDT,066-05-T33
Extruded to moulding compound standard
DIN EN ISO 21306, Teil 1
Density, g/cm³,
DIN EN ISO 1183
1.37
Tensile modulus of elasticity, MPa,
DIN EN ISO 527
3300
Light transmission, %
88 (3 mm)
Yield stress, MPa,
DIN EN ISO 527
73
Elongation at yield, %,
DIN EN ISO 527
4
Notched impact strength Charpy, kJ/m²,
DIN EN ISO 179-1eA
3
Dielectric strength, kV/mm,
DIN IEC 60243-1
30
Shore hardness D (15 s),
DIN EN ISO 868
84
Mean coefficient of linear thermal expansion, K-1,
ISO 11359-2
0,8 x 10-4
Vicat B, °C,
DIN EN ISO 306
66
Surface resistivity, Ohm,
DIN IEC 60093
≥ 1013
Temperature range, °C
0 - 60
Fire behaviour UL 94
UL 94 V-0 up from 1 mm
Fire behaviour DIN 4102
DIN 4102 B1 low flammability 1 to 4 mm
Fire behaviour BS 476
BS 476 class 1 for 3 mm
Physiological safety in accordance with BfR (German Federal Institute for risk valuation)
no



All specifications are deemed to be approximate values in respect of the specific material and may vary depending on the processing methods used. In general, data specified applies to average values measured on extruded sheets with a thickness of 4 mm. In the case of sheets manufactured by means of pressing, testing is generally performed on sheets with a thickness of 20 mm. Deviations from the values specified are possible if the sheets in this thickness are not available. In the case of backed sheets, all technical specifications relate to the non-backed base sheets. Information presented herein is not necessarily applicable to other products (e.g. pipes, solid rods) of the same material or products that have undergone downstream processing. Suitability of materials for a specific field of application must be assessed by the party responsible for processing or the end-user. All technical specifications presented herein are designed merely to provide assistance in terms of project planning. They do not constitute a guarantee of specific properties or qualities. For further information, please contact our Technical Service Centre at tsc@simona.de.

PVC-GLAS Data sheet

Rigid PVC, normal impact strength, transparent

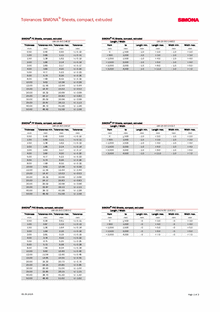

Tolerances Sheets extruded Brochures

Tolerances of SIMONA® extruded Sheets

PDF | 58.12 KB
