PVDF Solid Rods
Order no. 035000649
Material
PVDF

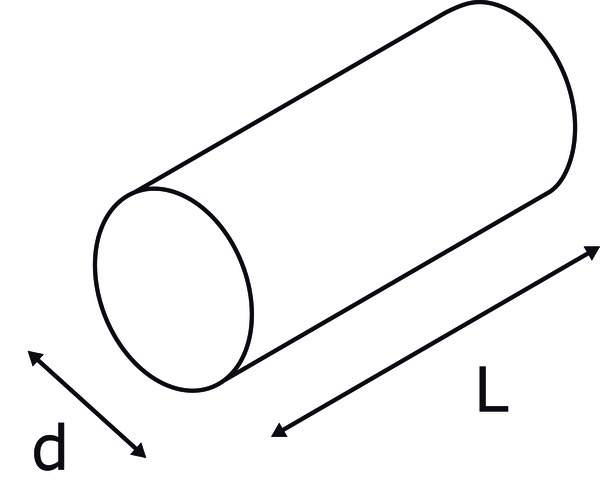

Length L mm
1000
Diameter d mm
350.0
Weight kg/m
178,83
Colour
natural
Product no.
035000649
Stock availability
Immediately available
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability
Product properties
- High-performance material
- Low flammability
- Excellent chemical resistance
- Exceptionally good ageing resistance
- High rigidity
Areas of use
- Chemical installations
- Pharmaceuticals and bioindustry
- Mining
Approvals/certifications
- Produced from raw material with USP class VI certification
- Produced from DIBt-approved moulding compound
- DIN 4102 B1 low flammability (self-assessment without test certificate)
- Physiological safety in accordance with BfR
- Food compliance EU 10/2011
- Food compliance FDA
Processing
PVDF Data sheet
Partially fluorinated high-performance plastic, homopolymeric polyvinylidene fluoride, UV stability
SIMONA® Solid and Hollow Rods - Cost-effective production of fittings and finished parts Brochures
SIMONA® Solid and Hollow Rods are the perfect choice for the production of fittings and finished parts using CNC machining centres. The extruded rods combine high chemical resistance and excellent processing characteristics with extreme toughness and rigidity. aus.
PDF | 1.10 MB

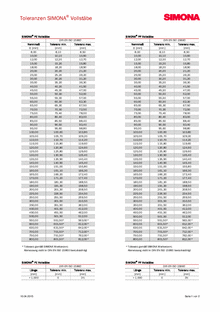

Tolerances of Solid Rods Brochures
Tolerances of SIMONA® Solid Rods
PDF | 93.84 KB
